SPECTRUM CARGO MOBILE

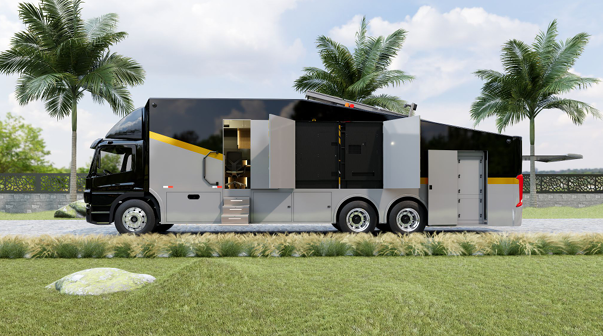

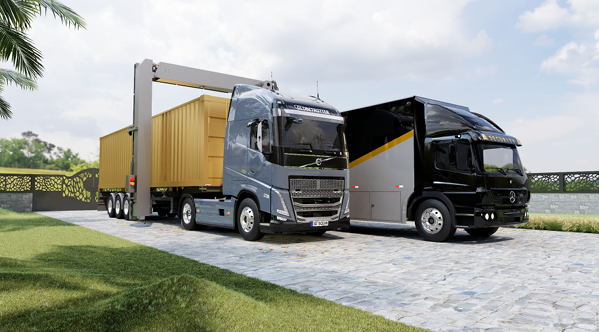

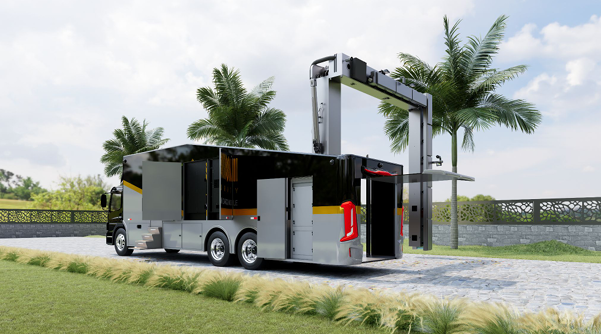

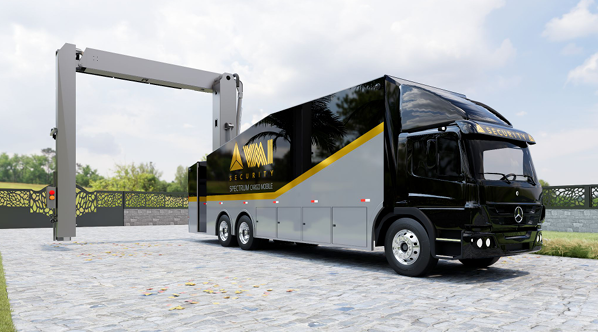

Spectrum Cargo Mobile represents a new generation of cargo inspection systems from VMI, using a linear electron accelerator as its radiation source. It is a fully independent X-ray inspection solution that, thanks to advanced engineering and outstanding mobility, enables rapid deployment in any operational environment.

The system provides non-invasive inspection of standard cargo, freight vehicles, shipping containers, and oversized cargo without the need for fixed infrastructure. Thanks to the pneumatic suspension of the front axle, the system achieves a low inspection beam height (less than 25 cm), maximizing coverage across diverse terrain and access conditions.

STANDARD FUNCTION

Automatic image storage
Up to 8× zoom
Pan
Linear and non-linear contrast mapping
Negative/positive density marker
Image export in TIFF, JPG, UFF and BMP formats
High-density enhancement
Edge enhancement / Edge detection
Detail enhancement of dense areas
High penetration function
Storage capacity for more than 200,000 images (expandable)
Suspicious image tagging
Real-time scanning
Self-diagnostic system
Image smoothing
Automatic differentiation of organic, inorganic, metallic and heavy-metal materials using color coding (Model: 6/4 MeV Dual Energy)

OPTIONAL FEATURES AND ACCESSORIES

Automatic vehicle license plate recognition system (OCR)
Automatic container number recognition system (OCR)
Gamma and neutron radiation monitor
Additional image analysis station
UPS (backup power source) for the entire system
Arpia™ Artificial Intelligence
Cabin inspection
340 mm penetration

product specifications

SHOW MORE

SPECTRUM CARGO MOBILE

Maximum vehicle dimensions

3.9 m (W) / 5.0 m (H), unlimited length

Scanning modes

Portal & Drive-through
(optional cabin scanning)

Scanning speed

Drive-through (DT): 3–15 km/h
Portal (Gantry): 0.72–2.88 km/h

System throughput

180 vehicles/h (Drive-through)
25 vehicles/h (Portal)

Steel penetration

320 mm (340 mm optional)

Operators

2 (expandable to 3)

Inspection height from the ground

< 20 cm

Beam power

6 MeV Dual Energy (4 / 6 MeV)

Spatial / wire / contrast resolution

3 mm / 2 mm / 1%

Dose to driver / operator

≤ 0.1 µSv/inspection / ≤ 1 mSv/year

Dose rate monitoring

0.2–0.45 Gy/min

Chassis

Mercedes-Benz Atego 2429

Generator

72 h autonomy

Temperature / humidity

−20 to +50 °C / ≈ 24 t / IP65
