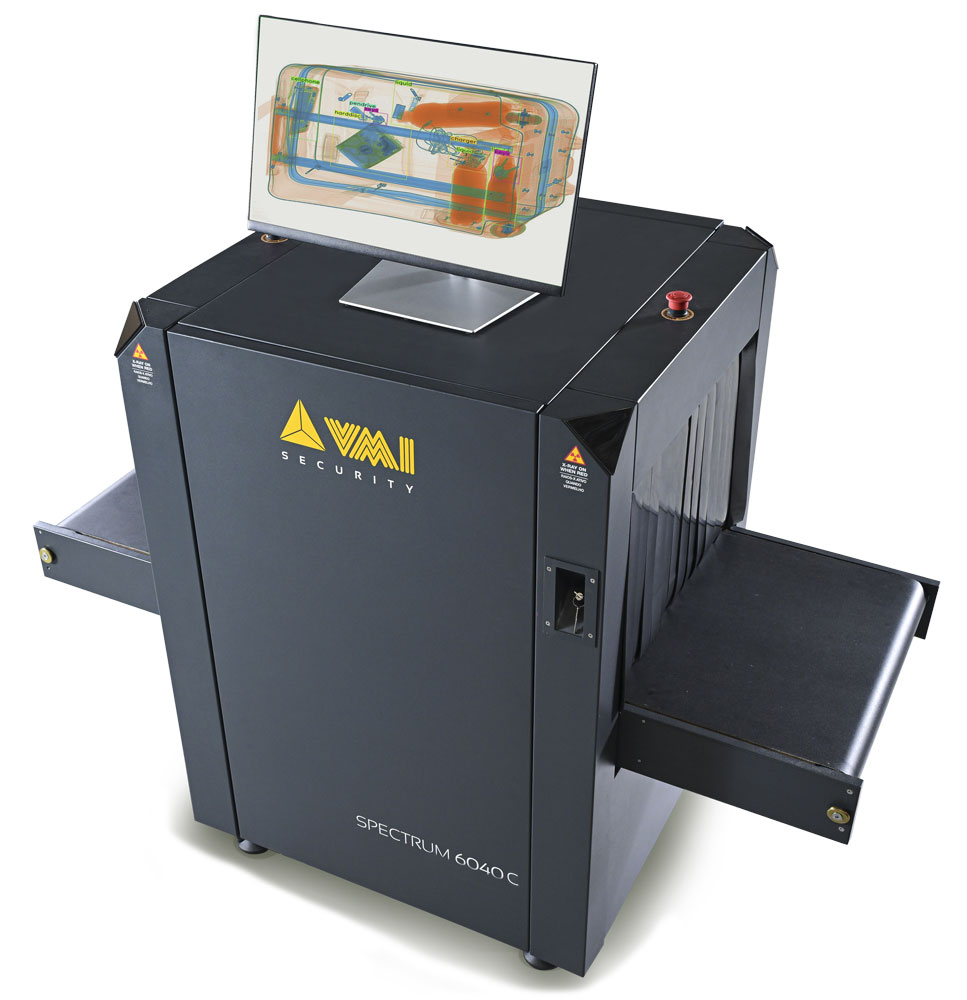

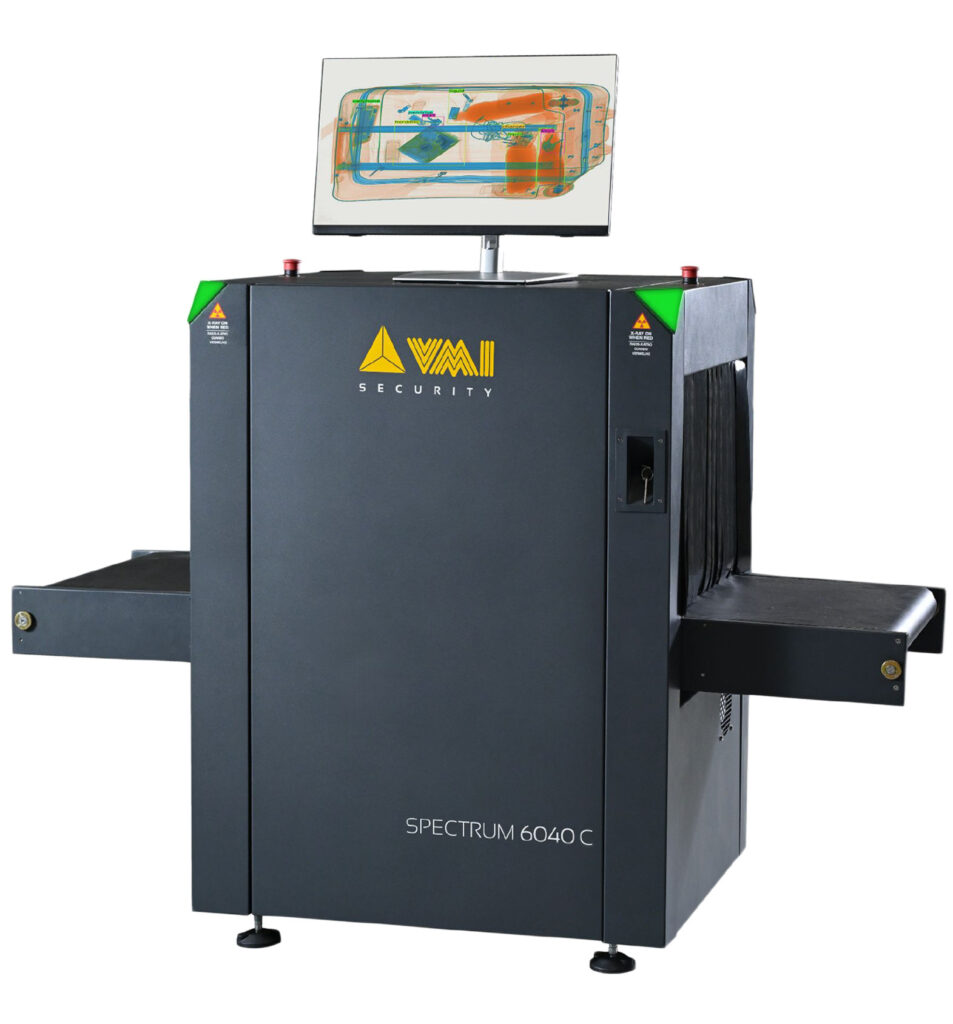

SPECTRUM 6040 C
The Spectrum 6040C is the perfect combination of modern design and cuttingedge technology. Developed to operate in environments with high demand for security and precision, it delivers X-ray images with exceptional clarity and features an intelligent system capable of identifying threats with impressive efficiency.
Lightweight, versatile, and easy to transport, its compact format and foldable conveyor belt ensure mobility even in the most challenging spaces.
STANDARD FUNCTION
OPTIONAL FUNCTIONS AND ACCESSORIES
product specifications
SHOW MORE
SPECTRUM 6040 C
Dimensions
1632 mm (L)/ 800 mm (W)/ 1200 mm (H)
Dimensions with folded conveyor
860 mm (L) / 800 mm (W) / 1200 mm (H)
Approximate weight
450 kg
Operating temperature and humidity
0°C to 40°C / 5% to 95% (non-condensing)
Storage temperature and humidity
-40°C to 60°C / 5% to 95% (non-condensing)
Power Supply
110 -127 VAC / 208 -240 VAC (-15% to +10%); 50 Hz/60 Hz, +/-3 Hz
Power
700 VA
Tunnel dimensions
606 mm (L) / 416 mm (H)
Conveyor Speed:
0,22 m/s (Configurable)
Conveyor height
650 mm
Maximum load on the conveyor
80 kg
Standard generator
160 kV operating at 150 kV
Wire resolution
40 AWG
Steel penetration
40 mm
Monitor
Color, high resolution (1920×1080 pixels) Configurable size
Cooling
Insulating oil with forced air cooling
Beam orientation
Lower-to-upper diagonal
